TME adds BLOCK PCB transformers from 0.35 VA to 52 VA

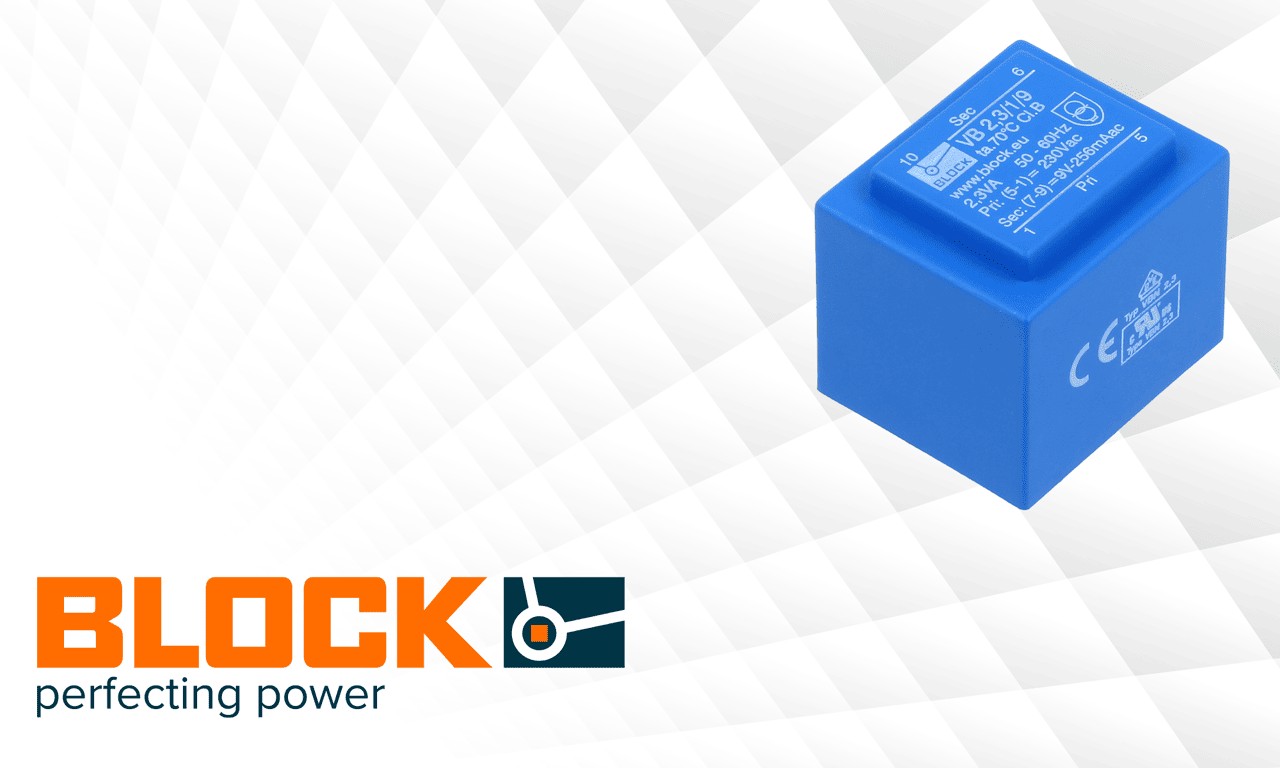

Image: BLOCK / TME
Transfer Multisort Elektronik has expanded its BLOCK range with encapsulated PCB transformers rated from 0.35 VA to 52 VA.
The assortment includes versions with a 230 V AC primary winding and versions with two 115 V AC primary windings. Depending on the part, the transformers provide one or two secondary windings, with listed secondary voltages from 6 V to 24 V.
Selected models offer secondary current up to 5.55 A. That upper value does not apply across the range: power, voltage, winding configuration and current ratings are specified for the individual transformer.
TME lists insulation class B or E, depending on the model, and compliance with EN 61558-2-6 and UL 5085-1. The products carry an IP00 rating.
The smallest listed package measures 22 × 22.7 × 15 mm, while the range extends to 94 × 61 × 58.5 mm. All the transformers in the announcement are intended for PCB mounting.
Sources: Original TME range announcement.
